UL 2085 Fireguard® Tanks for Protected Fuel Storage
UL 2085 Fireguard® tanks combine a steel primary tank, integral secondary containment, and lightweight fire-resistant insulation in one factory-built system. As a result, these protected above ground storage tanks provide enhanced fire, impact, and environmental protection for demanding fuel storage applications.
Whether your project supports fleet fueling, emergency generators, municipalities, industrial facilities, airports, or government operations, these protected fuel storage tanks provide dependable storage for diesel, gasoline, biodiesel, aviation fuels, waste oil, and many other compatible liquids.
What Are UL 2085 Fireguard® Tanks?
UL 2085 Fireguard® tanks are protected above ground storage tanks designed for applications that require a higher level of fire protection than a standard above ground storage tank. They combine a steel primary tank, integral secondary containment, and lightweight fire-resistant insulation into one factory-built system.
Unlike a standard UL 142 tank, a UL 2085 Fireguard® tank undergoes additional testing for fire exposure, impact resistance, ballistic resistance, thermal shock, and hose-stream performance. Consequently, many engineers, architects, insurance providers, and Authorities Having Jurisdiction (AHJs) specify these protected above ground storage tanks for projects where additional fire protection is required.
Clark Welding Tanks offers UL 2085 Fireguard® tanks in capacities from 150 to 30,000 gallons, including single and multiple-compartment configurations. Furthermore, these tanks are available for diesel fuel, gasoline, biodiesel, aviation fuels, waste oil, chemicals, and many other compatible liquids.
If your project does not require a protected tank, a UL 142 Tank or STI Flameshield® Tank may be a more cost-effective solution. For more information, compare the differences in our UL 2085 vs. UL 142 guide or explore the official UL 142, UL 2080 & UL 2085 Compliance information.
IS A UL 2085 FIREGUARD® TANK RIGHT FOR YOUR PROJECT?
UL 2085 Fireguard® tanks are designed for projects that require enhanced fire protection, integral secondary containment, and dependable long-term performance. Whether you’re installing a new fuel system or replacing an existing tank, these protected fuel storage tanks provide a practical solution for many commercial, industrial, municipal, and government applications.
Enhanced Fire
Protection
UL 2085 Fireguard® tanks include lightweight fire-resistant insulation between the primary and outer steel tanks. As a result, they provide increased protection during an external fire while helping reduce heat transfer to the stored product.
Integral Secondary Containment
Every UL 2085 Fireguard® tank includes built-in secondary containment as part of the protected tank assembly. Consequently, the outer steel tank helps contain the contents of the primary tank if a leak occurs while providing an additional layer of environmental protection.
Impact & Ballistic Resistance
In addition to fire resistance, UL 2085 Fireguard® tanks are tested for impact and ballistic resistance as part of the UL 2085 listing. Therefore, they’re often selected for demanding installations where additional physical protection is important.
Factory-Built Protected System
Unlike field-built containment systems, UL 2085 Fireguard® tanks arrive as complete factory-built units. Furthermore, they can be equipped with pumps, meters, gauges, monitoring equipment, ladders, platforms, and many other options to match your project’s requirements.
Available Configurations & Equipment
Every project has different storage requirements. Whether you need a basic storage tank or a complete fueling system, Clark Welding Tanks can configure UL 2085 Fireguard® tanks to match your application. In addition, we offer a wide range of equipment, finishes, and custom options to help simplify installation and long-term operation.
- Tank Construction
- Capacities from 185 - 30,000 Gallons
- Carbon Steel
- Stainless Steel
- Stainless Steel Inner with Carbon Steel Outer
- Round & Rectangular Design
- Split Compartments
- UL Saddle Supports
- Custom Fabrication
- Built to Customer Specifications
- Custom Openings
- Special Nozzle Layouts
- Finishes
- Epoxy Primer
- White Urethane Topcoat
- Custom Paint Colors Available Upon Request
- Interior Coatings

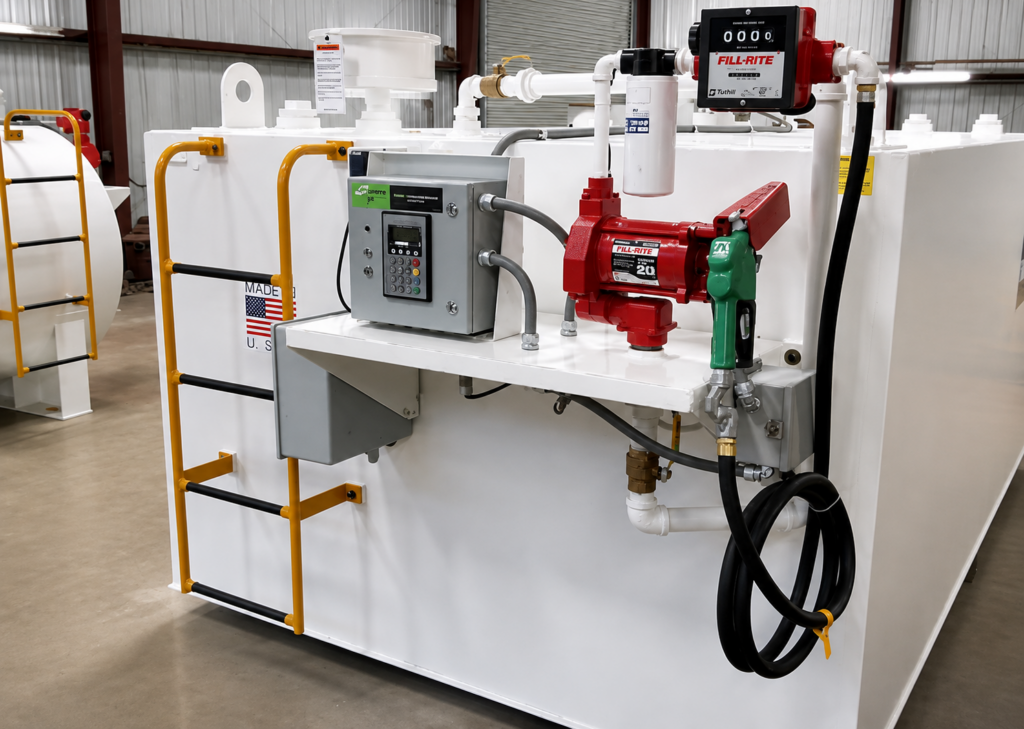

- Equipment Packages
- Pumps & Dispensing Equipment
- Gauges & Level Monitoring
- Overfill Prevention
- Vents & Fill Connections
Plan Your UL 2085 Fireguard® Tank
Every installation is different. Before requesting a quote, think about how the tank will be used, where it will be installed, and whether your project requires a protected tank. In addition, consider your future storage needs, available space, and equipment requirements before making your final decision. Then, our team will help you configure the right UL 2085 Fireguard® tank for your application.
✓ What product will you store?
Diesel fuel, gasoline, biodiesel, aviation fuels, waste oil, chemicals, and other compatible liquids may require different tank options, coatings, fittings, or equipment.
✓ How much storage capacity do you need?
Estimate your current fuel usage, delivery schedule, and future growth to help determine the right tank size.
✓ Will local codes require a protected tank?
Fire marshals, engineers, insurance providers, and the Authority Having Jurisdiction (AHJ) may require a UL 2085 protected tank based on your project and installation location.
✓ How will the tank be used?
Whether you’re storing fuel for fleet vehicles, emergency generators, industrial equipment, or municipal operations, we’ll help configure the right equipment package for your application.
✓ What equipment will you need?
Consider pumps, meters, filters, hose reels, gauges, overfill prevention equipment, monitoring systems, and other accessories before finalizing your design.
✓ Where will the tank be installed?
Before installation, review the available space, delivery access, foundation requirements, maintenance clearance, and local setbacks.
Finally, explore our Fireguard® Tank Buyer’s Guide, compare UL 2085 vs. UL 142, or Request a Fuel Storage Tank Quote to discuss your project with our team.
Helpful Resources for UL 2085 Fireguard® Tanks
Before making your decision, explore the guides below to learn more about protected above ground storage tanks, fire protection, and fuel storage planning. Whether you’re comparing different tank designs or preparing for a new installation, these resources will help you choose the right solution for your project.
Learn how UL 2085 Fireguard® tanks work, where they’re commonly used, and what to consider before selecting a protected tank.
Compare UL 2085 Fireguard® tanks with standard UL 142 tanks to understand the differences in fire protection, secondary containment, testing, and common applications.
In addition, learn how to compare UL 142, Flameshield®, Fireguard®, and self-contained tanks before selecting the right storage solution.
See how pumps, meters, filters, hose reels, monitoring equipment, and other accessories can transform a storage tank into a complete fueling solution.
See Our Self-Contained Tank Projects
Browse more than 700 project photos spanning more than three decades of manufacturing. Whether you’re looking for protected fuel storage tanks or complete fueling systems, our portfolio showcases a wide variety of UL 2085 Fireguard® tanks built for demanding applications. In addition, you’ll find examples of custom fabrication, dispensing equipment, access systems, and completed installations from customers across many industries.
UL 2085 Fireguard® Tanks
Explore completed UL 2085 Fireguard® tanks in a variety of capacities, configurations, and custom applications.
Dispensing Equipment
Discover pumps, meters, filters, hose reels, cabinets, and complete fueling systems installed before shipment.
Access Systems
See ladders, stairs, platforms, catwalks, and handrails designed for safe access, inspections, and maintenance.
Custom Tank Options
Explore monitoring equipment, support systems, and other options built to customer specifications.
Let's Build the Right UL 2085 Fireguard® Tank for Your Operation
Whether you’re replacing an existing tank or planning a new installation, Clark Welding Tanks is here to help. First, we’ll learn about your project, fuel type, site conditions, and storage requirements. Then, we’ll help you determine whether a UL 2085 Fireguard® tank is the right solution or if another above ground storage tank better fits your application.
In addition, we’ll help you select the right capacity, equipment package, monitoring options, and custom accessories for your project. Finally, we’ll answer your questions and provide a detailed quote so you can move forward with confidence.
